Iris Project

In this project…

This page is still a work in progress and I was having some trouble converting from .ipynb files. Check back later for the completed page.

# import packages
%matplotlib inline
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd
from matplotlib.legend_handler import HandlerLine2D
from sklearn.metrics import accuracy_score
from sklearn.metrics import confusion_matrix
from sklearn.metrics import classification_report
from sklearn.metrics import mean_squared_error
from sklearn.metrics import mean_absolute_error
from sklearn.tree import DecisionTreeClassifier
from sklearn.tree import DecisionTreeRegressor
from sklearn.model_selection import GridSearchCV

# stablize output across runs
np.random.seed(0)

Dataset

This project uses the well known Iris dataset to classify the flowers into three subspecies: iris setosa, iris virginica and iris versicolor. It has four features, including:

Sepal.Length: sepal length in centimeters.
Sepal.Width: sepal width in centimeters.
Petal.Length: petal length in centimeters.
Petal.Width: petal width in centimeters.

## load the iris train and test data from CSV files
train = pd.read_csv('https://raw.githubusercontent.com/zariable/data/master/iris_train.csv')
test = pd.read_csv('https://raw.githubusercontent.com/zariable/data/master/iris_test.csv')

'''
This dataset was made by my professor, but comes from the Iris Dataset.
It can also be imported through sklearn and divided using a 67% training and 33% test split.

from sklearn import datasets
data = datasets.load_iris()
'''

train_x = train.iloc[:,0:4]
train_y = train.iloc[:,4]

test_x = test.iloc[:,0:4]
test_y = test.iloc[:,4]

# print the number of instances in each class
print('Train Data\n\n'+ str(train_y.value_counts().sort_index()))
print('\n\nTest Data\n\n' + str(test_y.value_counts().sort_index()))

Train Data

Iris-setosa        34
Iris-versicolor    32
Iris-virginica     39
Name: species, dtype: int64


Test Data

Iris-setosa        16
Iris-versicolor    18
Iris-virginica     11
Name: species, dtype: int64

Decision Tree Classifier

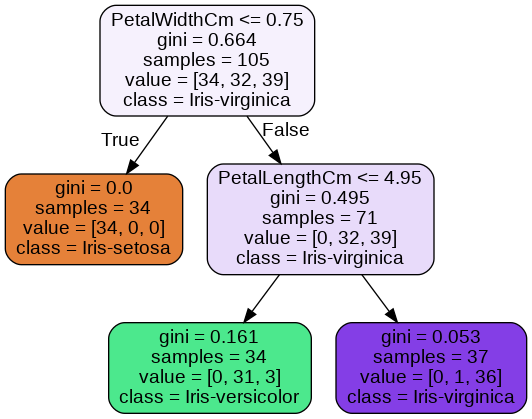

Training and visualizing a basic DTC

from sklearn.externals.six import StringIO
from IPython.display import Image
from sklearn.tree import export_graphviz
import pydotplus

# Making simple DTC to get an idea of the data
dtc = DecisionTreeClassifier(max_depth=2)
print(dtc.fit(train_x, train_y),"\n")

dot_data = StringIO()
feature_names = train_x.columns
class_names = train_y.unique()
class_names.sort()
export_graphviz(dtc, out_file=dot_data, feature_names=feature_names,
                class_names=class_names, filled=True, rounded=True)
graph = pydotplus.graph_from_dot_data(dot_data.getvalue())
Image(graph.create_png())

DecisionTreeClassifier(ccp_alpha=0.0, class_weight=None, criterion='gini',
                       max_depth=2, max_features=None, max_leaf_nodes=None,
                       min_impurity_decrease=0.0, min_impurity_split=None,
                       min_samples_leaf=1, min_samples_split=2,
                       min_weight_fraction_leaf=0.0, presort='deprecated',
                       random_state=None, splitter='best')

png

Evaulating performance

# Examing the performance of the DTC
test_z = dtc.predict(test_x)

print("model accuracy: {}".format(round(accuracy_score(test_y, test_z),4)))
print("\n\nmodel confusion matrix:\n {}".format(confusion_matrix(test_y, test_z,
      labels=["Iris-setosa", "Iris-versicolor", "Iris-virginica"])))
print("\n\nclassification report:\n {}".format(classification_report(test_y, test_z,
      labels=["Iris-setosa", "Iris-versicolor", "Iris-virginica"])))

model accuracy: 0.9111


model confusion matrix:
 [[16  0  0]
 [ 0 17  1]
 [ 0  3  8]]


classification report:
                  precision    recall  f1-score   support

    Iris-setosa       1.00      1.00      1.00        16
Iris-versicolor       0.85      0.94      0.89        18
 Iris-virginica       0.89      0.73      0.80        11

       accuracy                           0.91        45
      macro avg       0.91      0.89      0.90        45
   weighted avg       0.91      0.91      0.91        45

Exploring Hyper-parameters

# Evaluated performance of DT model by changing max_depth

# However, there were only 3 features, so max_depth was value between 1 and 3.

max_depth = range(1,11)
train_accuracy = []
test_accuracy = []
for x in max_depth:
   dtc = DecisionTreeClassifier(max_depth=x)
   dtc.fit(train_x, train_y)
   test_z = dtc.predict(test_x)
   train_z = dtc.predict(train_x)
   train_accuracy.append(accuracy_score(train_y,train_z))
   test_accuracy.append(accuracy_score(test_y,test_z))

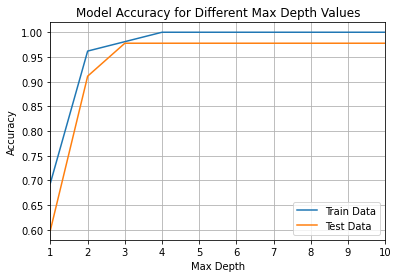

plt.plot(max_depth,train_accuracy, label='Train Data')
plt.plot(max_depth,test_accuracy, label='Test Data')
plt.title('Model Accuracy for Different Max Depth Values')
plt.xlabel('Max Depth')
plt.ylabel('Accuracy')
plt.legend()
plt.xlim(left=1, right=10)
plt.grid()

png

Examing the DTC in greater detail

Used GridSearchCV to change hyper-parameters

# Created function for reporting results

def reporting(x):
  print("The best score is {}".format(round((x.best_score_),4)))
  print("The best hyper parameter setting is {}\n".format(x.best_params_))

  test_z = x.predict(test_x)

  print("model accuracy: {}".format(round(accuracy_score(test_y, test_z),4)))
  print("\n\nmodel confusion matrix:\n {}".format(confusion_matrix(test_y, test_z,
      labels=["Iris-setosa", "Iris-versicolor", "Iris-virginica"])))
  print("\n\nclassification report:\n {}".format(classification_report(test_y, test_z,
      labels=["Iris-setosa", "Iris-versicolor", "Iris-virginica"])))

# Fine-tuned the model, useing grid search with 3-fold cross-validation
parameters = {
    'criterion': ['gini','entropy'],
    'max_depth': [1,2,3],
    'min_samples_split': [0.01,0.05,0.1,0.15]
}

dt = DecisionTreeClassifier()
grid = GridSearchCV(dt, parameters, cv =3)
grid.fit(train_x,train_y)

reporting(grid)

The best score is 0.9619
The best hyper parameter setting is {'criterion': 'gini', 'max_depth': 3, 'min_samples_split': 0.01}

model accuracy: 0.9778


model confusion matrix:
 [[16  0  0]
 [ 0 17  1]
 [ 0  0 11]]


classification report:
                  precision    recall  f1-score   support

    Iris-setosa       1.00      1.00      1.00        16
Iris-versicolor       1.00      0.94      0.97        18
 Iris-virginica       0.92      1.00      0.96        11

       accuracy                           0.98        45
      macro avg       0.97      0.98      0.98        45
   weighted avg       0.98      0.98      0.98        45

Exploring different methods for classifications

Random Forest

from sklearn.ensemble import RandomForestClassifier

parameters = {
    "n_estimators": [20, 40],
    'criterion': ['gini','entropy'],
    "max_depth": [1,2,3],
    "min_samples_split": [0.01,0.05,0.1,0.15]
}

rfc_grid = GridSearchCV(RandomForestClassifier(n_jobs=-1, random_state=0), parameters, cv=3)
rfc_grid.fit(train_x, train_y)

reporting(rfc_grid)

The best score is 0.9619
The best hyper parameter setting is {'criterion': 'gini', 'max_depth': 2, 'min_samples_split': 0.01, 'n_estimators': 40}

model accuracy: 0.9556


model confusion matrix:
 [[16  0  0]
 [ 0 17  1]
 [ 0  1 10]]


classification report:
                  precision    recall  f1-score   support

    Iris-setosa       1.00      1.00      1.00        16
Iris-versicolor       0.94      0.94      0.94        18
 Iris-virginica       0.91      0.91      0.91        11

       accuracy                           0.96        45
      macro avg       0.95      0.95      0.95        45
   weighted avg       0.96      0.96      0.96        45

Adaboost

from sklearn.ensemble import AdaBoostClassifier

parameters = {
    "n_estimators": [10,20, 30, 40],
    "learning_rate": [0.01, 0.05, 0.1, 1, 10]
}

adaboost=AdaBoostClassifier(DecisionTreeClassifier(max_depth=3), random_state=0)
adaboost_grid = GridSearchCV(adaboost, parameters, cv=3)
adaboost_grid.fit(train_x, train_y)

reporting(adaboost_grid)

The best score is 0.9619
The best hyper parameter setting is {'learning_rate': 0.1, 'n_estimators': 10}

model accuracy: 0.9556


model confusion matrix:
 [[16  0  0]
 [ 0 17  1]
 [ 0  1 10]]


classification report:
                  precision    recall  f1-score   support

    Iris-setosa       1.00      1.00      1.00        16
Iris-versicolor       0.94      0.94      0.94        18
 Iris-virginica       0.91      0.91      0.91        11

       accuracy                           0.96        45
      macro avg       0.95      0.95      0.95        45
   weighted avg       0.96      0.96      0.96        45

Gradient Boosting

from sklearn.ensemble import GradientBoostingClassifier

parameters = {
    "loss":["deviance","exponential"],
    "learning_rate": [0.01, 0.05,0.1],
    "min_samples_split": [0.05, 0.1, 0.2],
    "max_depth":[1,2,3],
    "n_estimators":[25,50,75,100]
}

gbc_grid = GridSearchCV(GradientBoostingClassifier(), parameters, cv=3, n_jobs=-1)
gbc_grid.fit(train_x, train_y)

reporting(gbc_grid)

The best score is 0.9619
The best hyper parameter setting is {'learning_rate': 0.01, 'loss': 'deviance', 'max_depth': 2, 'min_samples_split': 0.05, 'n_estimators': 50}

model accuracy: 0.9778


model confusion matrix:
 [[16  0  0]
 [ 0 17  1]
 [ 0  0 11]]


classification report:
                  precision    recall  f1-score   support

    Iris-setosa       1.00      1.00      1.00        16
Iris-versicolor       1.00      0.94      0.97        18
 Iris-virginica       0.92      1.00      0.96        11

       accuracy                           0.98        45
      macro avg       0.97      0.98      0.98        45
   weighted avg       0.98      0.98      0.98        45
